ECS公司為美國知名的制造商,通過40多年的快速發展,如今已成為晶體行業的佼佼者,在研發生產有質量的有源晶振產品上有自身獨特的見解與創新思想,致力于幫助用戶解決在晶體行業所遇到的問題。ECS開發低抖動低電流的SMD壓控晶振ECXV-P35B2N-24.000
ECS Inc. International 了解剛果民主共和國（“DRC”）及其毗鄰的九個國家（“涵蓋國家”）擁有豐富的自然資源。ECS晶振還認識到，美國政府和其他全球和行業組織已將剛果民主共和國和涵蓋國家內某些地區/礦山的一些采礦活動認定為可能導致侵犯人權和破壞環境，這些活動由非政府軍事團體控制。區域內。ECS 致力于進行嚴格的盡職調查，旨在盡可能驗證 ECS 供應鏈中使用的錫、鉭、鎢和金（“3TG 礦物”）的來源。ECS 承諾僅從對環境和社會負責的供應商處采購 3TG 礦物和其他材料。

ECS-2520S18-250-EN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-260-EN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-320-EN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-400-EN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-440-EN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S18-500-EN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S33-050-FN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S33-440-FN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S30-050-FN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S30-100-FN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S30-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S30-160-FN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S30-200-FN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S30-240-FN-TR	ECS晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S30-250-FN-TR	ECS晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S30-260-FN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S30-320-FN-TR	ECS晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S30-400-FN-TR	ECS晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S30-440-FN-TR	ECS晶振	ECS-2520S	44MHz	-40°C ~ 85°C
ECS-2520S30-500-FN-TR	ECS晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-050-FN-TR	ECS晶振	ECS-2520S	5MHz	-40°C ~ 85°C
ECS-2520S25-100-FN-TR	ECS晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S25-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S25-160-FN-TR	ECS晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S25-200-FN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C

Voltage Controlled Crystal Oscillators (VCXO) are critical to the proper function of discrete phase-locked loops. ECS Inc.’s VCXO products are available in a wide range of frequencies, many different voltages, and output options. Output logic configurations consist of HCMOS, LVDS, and LVPECL. Voltage Control Crystal Oscillators can be supplied in Surface Mount Device (SMD) and thru-hole packaging configurations.
壓控晶體振蕩器 (VCXO) 對于離散鎖相環的正常功能至關重要。ECS Inc. 的VCXO壓控晶振產品具有廣泛的頻率范圍、多種不同的電壓和輸出選項。輸出邏輯配置包括 HCMOS、LVDS 和 LVPECL。電壓控制晶體振蕩器可提供表面貼裝器件 (SMD) 和通孔封裝配置。ECS開發低抖動低電流的SMD壓控晶振ECXV-P35B2N-24.000

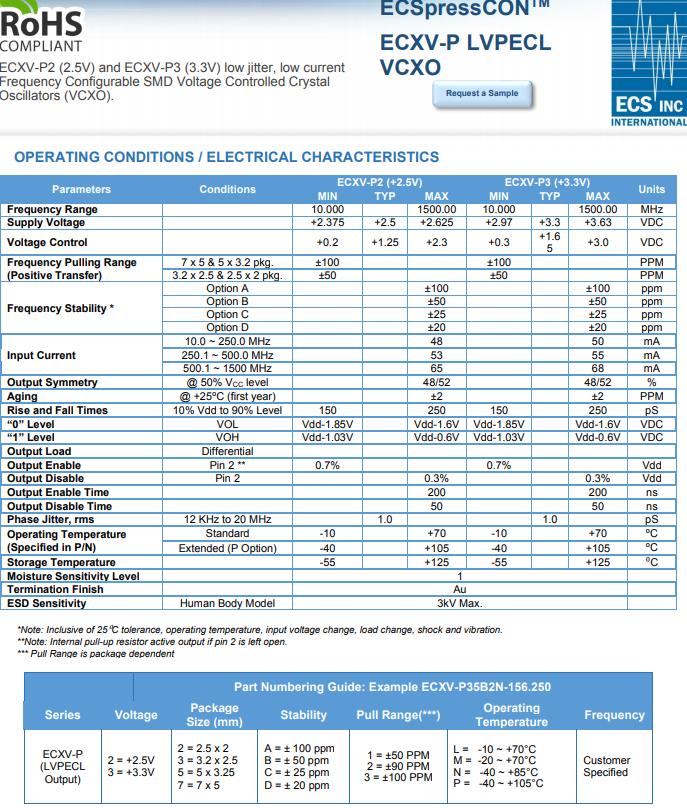

ECXV-P2 (2.5V) and ECXV-P3 (3.3V) low jitter, low current Frequency Configurable SMD Voltage Controlled Crystal Oscillators (VCXO).
Frequency Range 10.000 1500.00 10.000 1500.00 MHz Supply Voltage +2.375 +2.5 +2.625 +2.97 +3.3 +3.63 VDC Voltage Control +0.2 +1.25 +2.3 +0.3 +1.6 5 +3.0 VDC Frequency Pulling Range (Positive Transfer) 7 x 5 & 5 x 3.2 pkg. ±100 ±100 PPM 3.2 x 2.5 & 2.5 x 2 pkg. ±50 ±50 PPM Frequency Stability * Option A ±100 ±100 ppm Option B ±50 ±50 ppm Option C ±25 ±25 ppm Option D ±20 ±20 ppm Input Current 10.0 ~ 250.0 MHz 48 50 mA 250.1 ~ 500.0 MHz 53 55 mA 500.1 ~ 1500 MHz 65 68 mA Output Symmetry @ 50% VCC level 48/52 48/52 % Aging @ +25?C (first year) ±2 ±2 PPM Rise and Fall Times 10% Vdd to 90% Level 150 250 150 250 pS “0” Level VOL Vdd-1.85V Vdd-1.6V Vdd-1.85V Vdd-1.6V VDC “1” Level VOH Vdd-1.03V Vdd-0.6V Vdd-1.03V Vdd-0.6V VDC Output Load Differential Output Enable Pin 2 ** 0.7% 0.7% Vdd Output Disable Pin 2 0.3% 0.3% Vdd Output Enable Time 200 200 ns Output Disable Time 50 50 ns Phase Jitter, rms 12 KHz to 20 MHz 1.0 1.0 pS Operating Temperature (Specified in P/N) Standard -10 +70 -10 +70 ?C Extended (P Option) -40 +105 -40 +105 ?C Storage Temperature -55 +125 -55 +125 ?C Moisture Sensitivity Level 1 Termination Finish Au ESD Sensitivity Human Body Model 3kV Max. Part Numbering Guide: Example ECXV-P35B2N-156.250 Series Voltage Package Size (mm) Stability Pull Range(***) Operating Temperature Frequency ECXV-P (LVPECL Output) 2 = +2.5V 3 = +3.3V 2 = 2.5 x 2 3 = 3.2 x 2.5 5 = 5 x 3.25 7 = 7 x 5 A = ± 100 ppm B = ± 50 ppm C = ± 25 ppm D = ± 20 ppm 1 = ±50 PPM 2 = ±90 PPM 3 = ±100 PPM L = -10 ~ +70°C M = -20 ~ +70°C N = -40 ~ +85°C P = -40 ~ +105°C Customer Specified OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS ECXV-P2 (2.5V) and ECXV-P3 (3.3V) low jitter, low current Frequency Configurable SMD Voltage Controlled Crystal Oscillators (VCXO). ECSpressCONTM ECXV-P LVPECL VCXO Request a Sample *Note: Inclusive of 25?C tolerance, operating temperature, input voltage change, load change, shock and vibration
